Automatic Swing Barrier Gate with counter For Biometric Access Control system

Name: Automatic Swing Barrier Gate with counter For Biometric Access Control system
Brand: Goldantell
Price: 1 USD

Buy cheap Automatic Swing Barrier Gate with counter For Biometric Access Control system product

Brand Name : Goldantell

Model Number : GAT-601

Certification : CE/ROHS/FCC/SGS/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : Automatic Swing Barrier Gate with counter For Biometric Access Control system

Motor : DC24V solenoid valve

Housing material : domestic standard 304# stainless steel

Compatible : RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Swing arm angle : 180 degree

Time of opening/closing : 1 second

Size : 1200mm (L) *280mm (W) *1000mm (H)

Passage width : 530-830mm

Contact Now

Automatic Swing Barrier Gate with counter For Biometric Access Control system

Specifications:

Item	GAT-601-1( single motor ) GAT-601-2( double motors )
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	1second
Passage width	530-830mm
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
Transit speed	30-40 people/minute
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Communication interface	RS485/232
Support	operating video& Instruction will be sent to clients to help them better use the machines
Swing arm angle	180 degree

Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

10. Can manager and long-range control the turnstile directly by managing the computer.

Control system:

access control system	access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
charge management system	counter, coin- operation.
support special function	ESD tester system and function

Application:

Supermarket
Subway Station, Bus Station
,Airports, Hoverport
Tourism
Exhibition,Hotel
Bank
,Library,Theater
Swimming Hall,Fitness Gym
Residence Area
Enterprise’s Entrance and Exit Attendance

Direction Indicator:

The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized

Appearance, Dimension, Material & Surface Finish:

Appearance: customized according to customer’s requirement.

stainless steel thickness of the cabinet: customized within 1.2~2.0mm.

Material of the cabinet: 304 / 316 grade stainless steel.

Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking

Product Tags:

security swing gate

waist high turnstiles

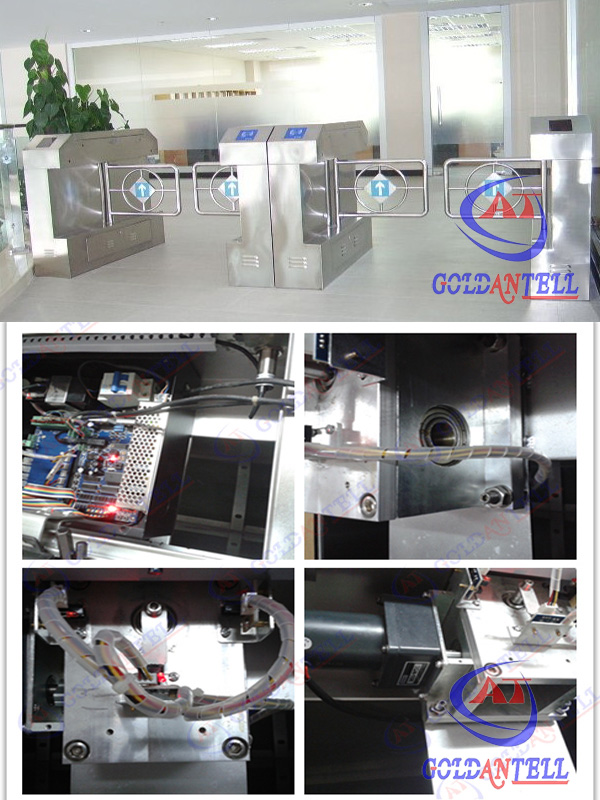

Automatic Swing Barrier Gate with counter For Biometric Access Control system Images
