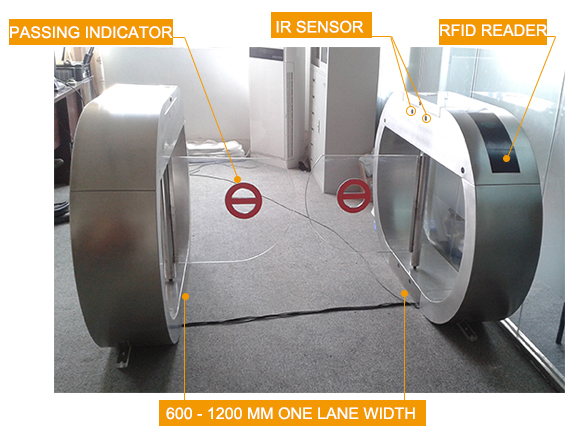

Customized Rfid Reader Swing Gate Turnstile Half Height One Lane 850mm Width

Brand Name : Goldantell

Model Number : GAT-635

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Material : 304 stainless steel/316 stainless steel

Application : Bank, hospital, airport, office

Passage width : 600-1200mm

OEM : OEM arm length,custom logo,custom size

Communication port : RS485 ,TCP/IP

Net weight : 50KG/set

Gross weight : 60KG/set

Compatible : RFID Reader&Fingerprint Reader ,Coin access,QR code reader,Bar code System,ESD Tester Access Control, remote button

Wing material : Acrylic

Contact Now



Customized Rfid Reader Swing Gate Turnstile Half Height One Lane 850mm Width


Standard Features

  1. Directional LED Optical Signals: Green Arrow or RED Cross signage.
  2. With fault self-check function and Alarm function, convenience for maintains.
  3. Mechanism is specially processed ,more durable.
  4. Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
  5. Ensures rapid, efficient & safe access control.
  6. Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
  7. Photo Electric Beams installed standard for all models.

Brief Introduction

Swing Turnstile is normally designed to be Semi-Automatic Type/ Manual Type/ All- automatic Type.

Swing Turnstile arm rotates 180 degrees per time, and it offers a comfortable space for users.

Swing Turnstile usually classified into these kinds: Bridge shape ( this item is the bridge shape ); Vertical shape; Pillar shape; Single motor and Double motor:single motor (suitable for single

passageway and multiple passageway); double motors (suitable for multiple passageways).



Specifications

Control ways Push button, RFID card, fingerprint recognition etc.
Normal running life 3 million
Time of opening/closing 1 second
Working voltage AC220±10%V 50±10%HZ
Size 1200 mm (L) * 300 mm (W) * 1000 mm (H)
Passage width 600-1200 mm
Swing arm angle 90/ 180 degree
Direction single or bi-directional (optional)
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Working environment

indoor/outdoor (with a tent over)
-10℃～70℃
Driving motor DC 24 V brush motor



Product details display

Customized Rfid Reader Swing Gate Turnstile Half Height One Lane 850mm Width



Details

1. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely ;And single direction photocell controlled passing and close

2. Working ways can be set in the control panel.

3. When power off, arm open automatically and power on again, arm will be held automatically.

4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

5. passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
6. Swing barrier is with standard electrical interface for the integration of various readers and writers.
7. Card-reading with memory or without memory function.

8. Stable running with little noise.

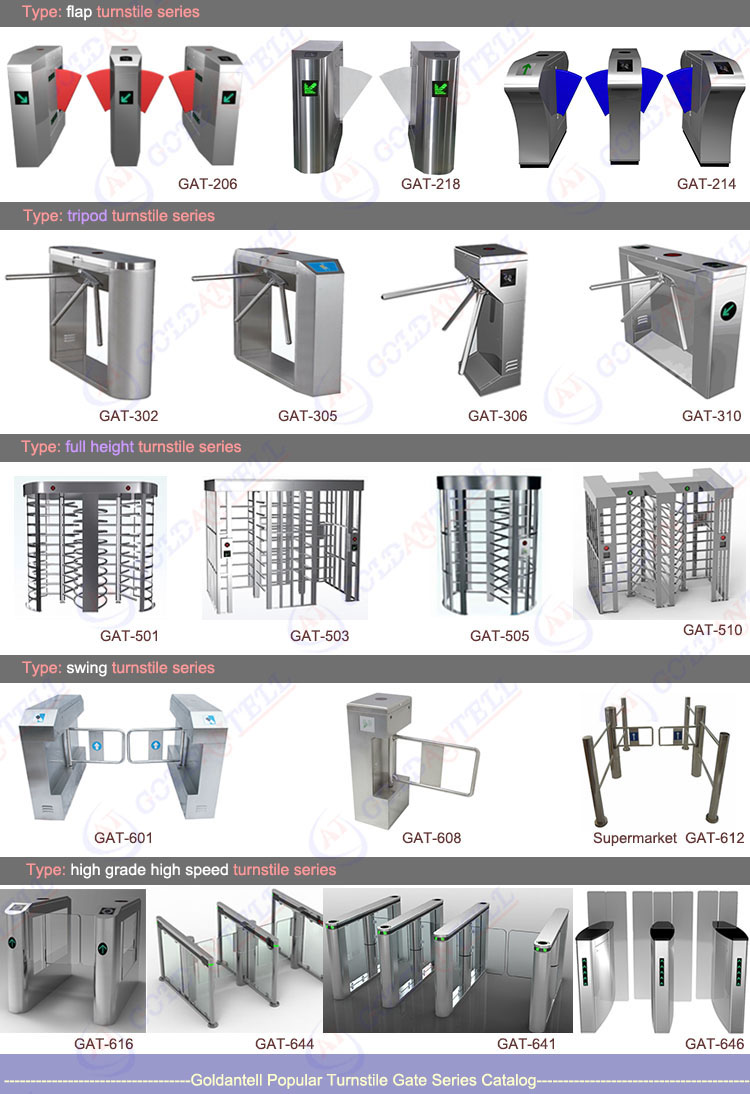

More popular items for your choice
