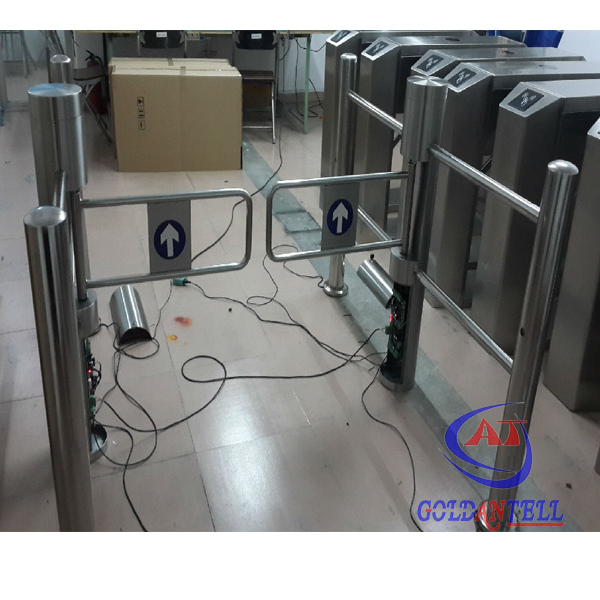

Supermarket swing barrier gate with Sound and light alarm prompt functions

  • 1
  • 2

Brand Name : Goldantell

Model Number : GAT-610

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : supermarket swing barrier gate with Sound and light alarm prompt functions

Motor : DC24V solenoid valve

Housing material : domestic standard 304# stainless steel

Compatible : RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Time of opening/closing : 1 second

Passage width : 530-830mm

Type : Half height swing barrier

Communication port : RS485 ,TCP/IP

Application : Indoor&outdoor

Contact Now


 Supermarket swing barrier gate with Sound and light alarm prompt functions


 Specifications:




Item


GAT-610-1( single motor )



Working voltage:



AC220±10%V 50±10%HZ


Time of opening



1second


Passage width



 530-830mm


Reset time after break down:



10 seconds


Transit speed



30-40 people/minute


Input interface:



RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,
Bar code System,ESD Tester Access Control, remote button



Communication interface



RS485/232


Direction:



single or bi-directional (optional)


Support





RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button




Warranty



1 years





Function:



1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. Can manager and long-range control the turnstile directly by managing the computer




 Extended function:





1



 LED counting function



2



 Box house can lengthen, swing arm lengthen
3



Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)
Voice Prompt Function


4



Normally open or closed can be adjust to meet the requirements of the different place.
Sound and light alarm prompt functions


5



Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately





Application:


  • Supermarket
  • Subway Station, Bus Station
  • ,Airports
  • Tourism
  • Exhibition
  • Bank
  • ,Library
  • Theater
  • Swimming Hall
  • Fitness Gym
  • Residence Area


Competitive Advantage:

1.More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. we can provide not only product, but also system software management.Save your time and cost.

3.Friendly and professional customer service people help you in 16 hours.
3.Special service from Goldantell For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
