Security Control Stainless Steel RFID Card Swing Turnstile , Rfid
Electric Swing Gate
RFID Card Swing Turnstile Specification
| Model | GAT-634-S | GAT-634-D |
| Item | Single swing barrier | Double swing barrier |
| Power consumption | 50W | 100W |
| Housing Size | 1200x280x990 mm |
| Housing material | 1.5--2mm, #304 Stainless Steel, Matt finish |
| Drive motor | DC brushless motor |
| Channel width | 600--1100mm |
| Pass speed | 30 persons/min. |
| Power supply | 220Vac 50Hz or 110Vac 60Hz |
| Input interface | Switch Volume or 12V Level |
| Communication interface | RS485 |
| Working temperature | -30°C~+70°C |
| Outside packing | Plywood box, 1650x260x1100 mm |
| Gross weight | 140KG/pair | 160KG/pair |
Features
Goldantell swing barriers are designed to control pedestrian entering and exiting, adopts stainless steel
#304,double brushed surface treatment, dustproof, rustproof, rainproof design, suitable for indoor use,
easy to integrate with other read/write devices, and widely use for applications like stadium, apartment,
gym, museum, station, library and factory etc.
1 . Provide normally open / normally close to satisfy management request.
2 . Compatible with RF card readers, bar code readers, biometric readers, push button...
3 . Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with
anti-strike function to protect pedestrian.

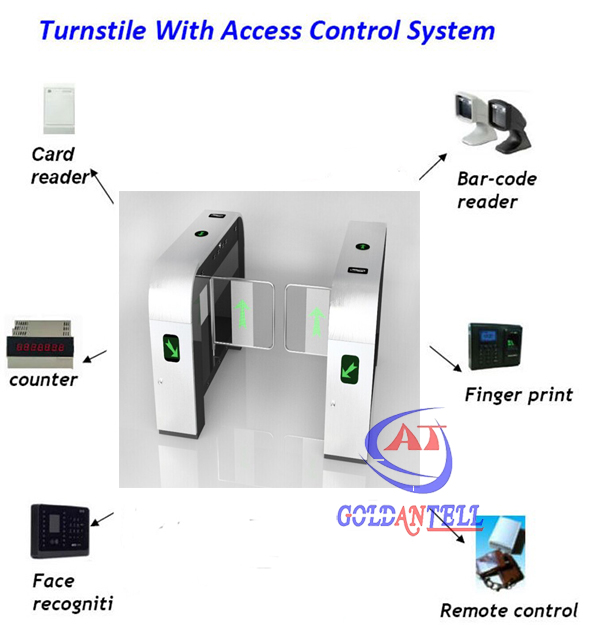

4 . Expanded to automatic identification system, access control system, Traffic control, attendance check
and fare collection system etc.
5 . Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after
the flap opened. The passing time is adjustable.
6 . Equipped with international interface, can be easily integrated with other R/W device and managed
through remote supervision computer
7 . (Optional) Support gate open while power failure and recover N/C mode after power on.
8 . (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times
correspondingly (N<=16)
9 . (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite
direction after reading the card.
10 . One direction or bi-direction is optional.
Application:
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,
Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special
Access Control
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
