LED Display Alarm Security Swing Barrier Gate for Bus Station , Exhibition
Hall and Airport
Security Swing Barrier Specification
| Power consumption | 40W |
| Housing Size | 1280/1400*288*990mm |
| Housing material | 1.2-2mm, 304# stainless steel, corosion resistant |
| Drive motor | DC brushless motor |
| Channel width | ≤1150mm |
| Pass speed | 15 persons or bike/min. |
| Panel open/close time | 1.5s(adjustable) |
| IP protection | IP54 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 3,000,000 cycle |
Goldantell Vertical Swing Barrier Introduction
Goldantell vertical swing barrier is a high-tech product which mainly provides intelligent management to
passageway.This product is finely processed with complete functions and high level, suitable for high-level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

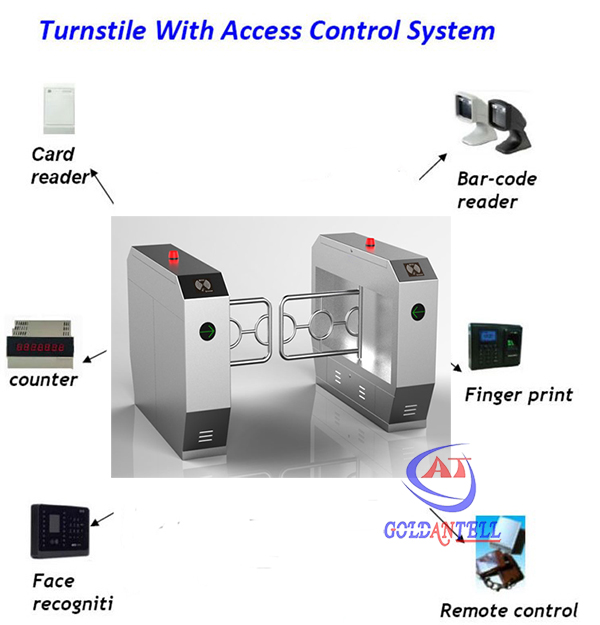

This equipment is subtly integrated with machine, electronics, micro-processor control and ID
identification, provides convenience for the use of card reader identification equipments, such as IC card,
ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway
through choosing various identification equipments and adopting fair, reliable security protection, alarming
equipment and direction indicating equipments.
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.)；Double
motors (suitable for multiple passageways)
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
finish.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,
Hotel,Factory,Bank,Prison,
Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s
Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee
4. Friendly and professional customer service people help you in 16 hours.
