Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot

Name: Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot
Brand: Goldantell
Price: 1 USD

Brand Name : Goldantell

Model Number : GAT-301

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T, Western Union, L/C,Paypal

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : Tripod Turnstile for Gym

Application place : Gym , amusement park , stadium , pulic area , office building , club, etc

Gross weight : 70KG

Material : 304 stainless steel

Size Of product : 1200mm (L) * 280mm (W) * 980mm (H)

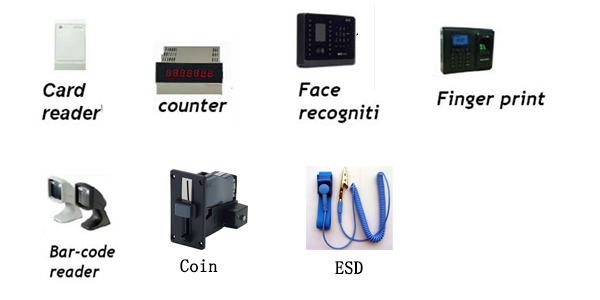

Compatible : RFID Reader & Fingerprint Reader , Coin acess , QR code reader,Bar code System ,ESD Tester Access Contro l, remote button

Communication port : RS485 ,TCP/IP

Production time : 7 working days

Passage width : ≤600 mm

LED light : direction arrow

Contact Now

Ticket tripod turnstile flow control passing with hs code and FRID card for scenic spot

Tripod Turnstile Technical Parameters　

Material	domestic standard 304# stainless steel
work voltage	AC220V±10% 50HZ±10%
Core	DC24V solenoid valve
Size	1200280980mm
Arm length	500mm
Support force of arm:	60kg
Max lane width	550MM
Rotation direction for arm	left or right, or bi-directional
Card reading window	standard or customized
Work environment	indoor or outdoor, 10°C~70°C , relative humidity::≤90%, no condensation
Barrier open time	0.2s
Transit speed	30 people/minute
Emergency	auto drop for arm
Normal work life	3,000,000 times
Communication interface	RS 485, distance ≤1200m
Input interface	relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma

Functions

Malfunction self-check and alarm reminder, ease of maitenance and use
Running method can be set through small buttons on the control panel
How arm reacts in emergency
How arm reacts when power on
Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)
Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
Unique positioning, self reset, one arm always in the horizontal level
LED lamp indicator
When open signal is given, arm rotate to a certain degree
How arm reacts when people passing
One direction or bi-direction flow control
Work directly with PC for remote control and management
LED counter Display
Bi-direction Anti reverse rotation

Feature :

The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain applications

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

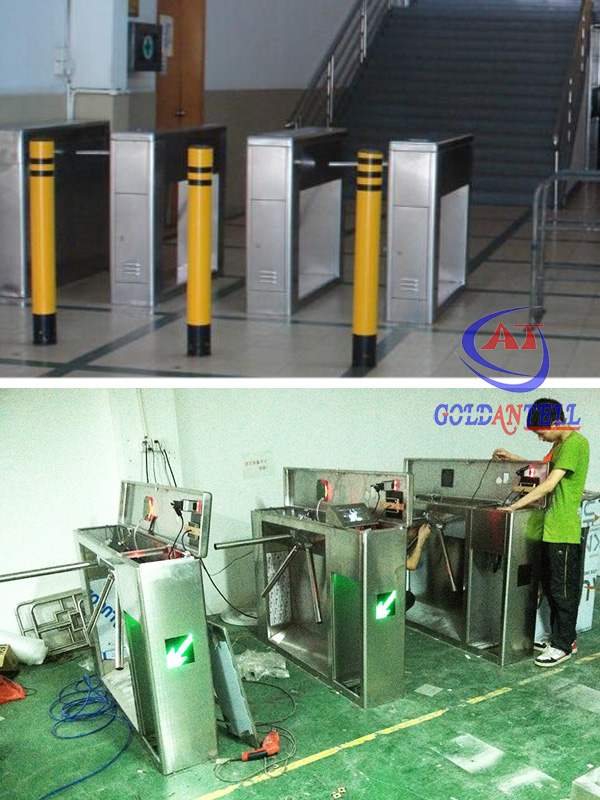

Tripod Turnstile Picture

Access Control:

Trading terms:

Payment Terms	T/T ,western Union,LC,Paypal
Supply Ability	2,000pcs per month
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery way	Sample normally by air cargo or express,quantity purchase by sea
Warranty	12 months
Trade terms	EX-W,FOB,CIF,DDU
OME	Custoon logo and size
