Operating Times 0.6s / 1s / 1.5s / 1.8s High Speed Boom Barrier for
Highway
Functions & Features:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
,
Specification:
| Type | Model: GAT-P28 |
| Operation time | 0.6s, 1s,1.5s, 1.8s, 3s. Customized |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy |
| Material | Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection |
| Size | 350*280*1070mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 80W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | less than 50 meters |
| Packing Size | 430*360*1150mm , strong carton case with cushion inside with air bubble film for protection,outside with a crate package |
| G.W | 60 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested If urgent, can be delivery by Airplane or express |
| Payment | Sample: full payment Order: usually 30%-40% advance deposite, balance before shipment |
| Advantages | 1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 9 years OEM/ODM experience 3. quick response for handling problems |
| Application | Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system |
1. Avoid vibrating caused by boom’s running;
2. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
3. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span
4. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and avoid
damaging easily during frequent usage.
Use & operation safety notes:
1. During arm going down, do not place anything under the booms; and no body is allowed to standing or
walking under the boom.
2. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.
3. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by
turning the manual swing manually.
4. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with
220V power supply.
5. The power supply system should be equipped with leakage breaker (≥10A).
6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If
necessary, professional staff is required.
7. During running, do not open the case-cover or case-door, to avoid accident.

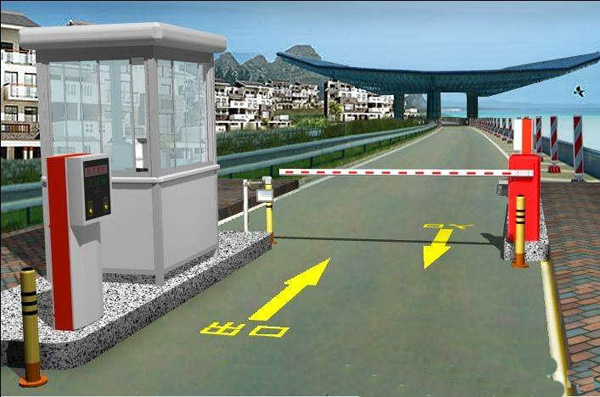

Project schemes:
1. Except the product, also offer the RFID card reader control system.
2. Only the boom barrier gate, you can use the button or remote controller to control it.
3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle
detector,Entrance control system main board, System special switching power supply, parking lot system
management software with dongle , etc.
Our service:
1. All items have 24 month quality guarantee.
2. Custom design shape and logo, for large amount, custom logo available for free.
3. Supported by professional engineers.
4. Special discount of our distributors or agents in their area.
5. Packing in standard export carton, suggest you pack it by wooden case to protect the products
6. CE, ROSH available.
7. Friendly and professional customer service people help you in 16 hours.
