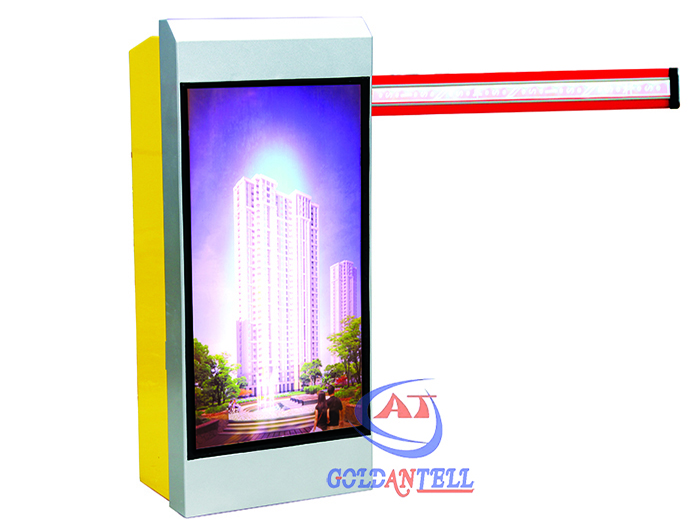

Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54

Name: Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54
Brand: Goldantell
Price: 1 USD

Buy cheap Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy Duty Waterproof IP54 product

Brand Name : Goldantell

Model Number : GAT-P46

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Name : Advertising Boom Barrier

Rod Type : Straight Arm / Foldable / Fence

Size Of product : 400*300*1000mm

Package size : 470*360*1060mm

Gross weight : 60KG

Rail length : 1-6 meter for option

Material : cold rolled mild steel/stainless steel

Power supply : AC220V±10%50HZ AC110V±10%50HZ/60HZ

Color : Yellow&white

Contact Now

Deluxe Straight Arm Advertising Boom Barrier Gate RFID Acess Heavy

Duty Waterproof IP54

Advertising Boom Barrier Specifications:

Model	GAT-P43
Working Temperature	-40℃～+75℃
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	80W
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	58kgs
Speed	3S,4S, 6S
Max boom length	6 meters
Motor Rotational speed	1400rmp
Protection Degree	IP54

Model Selection and Differences:

Boom type	Boom Length(L)		Diameter of the spring(mm)	Note
Straight boom	6M≥L≥5M		5.5/4.5
	5M≥L≥4.5M		5.5	Dispatching 4.5
	4.5M≥L≥3M		4.5	Dispatching 4.5
Straight boom adhesive tape	5M≥L≥4M	4.5M≥L≥3M	5.5/4.5	Dispatching 4.5
	4M≥L≥3M	3.5M≥L≥3M	4.5	Dispatching 4.5
Folding boom	6M≥L≥5M		6.5/4.5
	5M≥L≥4M		5.5/4.5
	4M≥L≥3M		4.5
	Two fence boom	5M≥L≥4M	6.5/5.5
Fence boom		4M≥L≥3M	5.5/4.5
	Three fence boom	4M≥L≥3M	6.5/5.5
		3M≥L≥2M	5.5/4.5

Functions & Features:

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)

Common problems & solutions:

Common problem	Analysis	Solution
When motor running, the boom does not work.	1. the key-pin of main shaft of motor drops 2.bending-arm of mechanism part breaks-down	1. open the motor and refix the key-pin 2. dismount the mechanism part and replace the bending-arm
The arm vibrates during moving-down or reaching its horizontal position	1. Non-balance caused by weak spring tension; 2. Arm’s screws are loose; 3. The case is not fixed well.	1. replace the spring according to the Matching table of starndard spring or change hanging-hole’s position; or adjust the connection screw-rod of the spring to correct position; 2. fasten arm’s screws; 3. fasten the botls of the case;
The arm stops during movement.	1.wrong adjustment of limit switches 2.too much spring tension	1.check the connection of limit switches and correct; (see connection drawing fordetails) 2.replace the spring or change hanging-hole’s position;
Anti-collision fails	ground sensor or IR wire damages or wrong connection	Replace ground sensor or Irparts, correct the connection carefully according to the drawing;
The arm could not reach right position.	Wrong adjustment of limit switches	place the arm in horizontal orveritical position, adjust the photo-barrierto the middle of photoelectric switches till lightis on. Red light for reaching horizontal position; green light is for reaching vertical position;
