Qr Code Barcode Waist Height Turnstile For Stadium/Gym/Cinema/Scenic Area
Barcode waist height turnstile production
Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semi-
automatic is the most widely used.
Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable,
Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage
to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in Tourist
attractions , station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
This equipment is intergrated with mechanism,electric and micro-controller and various kinds of i
identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide
intelligent control and management to flow control.
Barcode wasit height turnstile gate speicifications

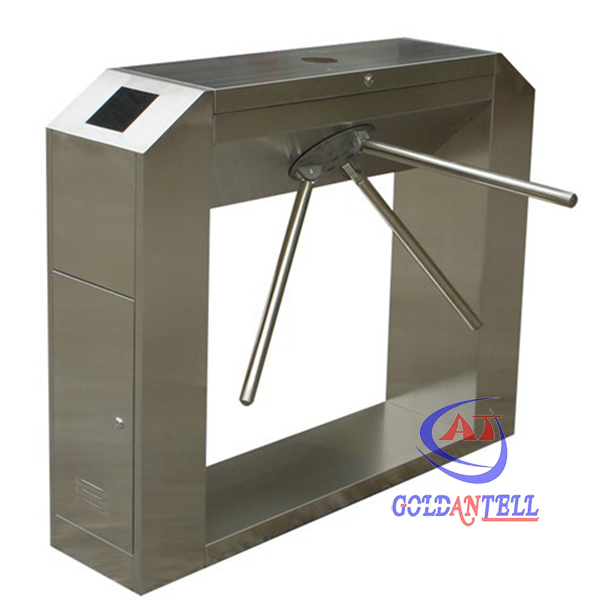

| Goldantell Product Picture | Technical Parameters |
|
 | Housing material: domestic standard 304# stainless steel |
| Working voltage: AC220±10%V 50±10%HZ |
| Working movement: DC24V solenoid valve |
| Size: 1200mm (L) * 280mm (W) * 980mm (H) |
| Arm width: 510 mm |
| Support force of arm: 60kg |
| Passage width: ≤600 mm |
| Direction: single or bi-directional (optional) |
| LED light: direction arrow |
| Working environment: indoor/outdoor (with a tent over) -10℃～70℃ Relative humidity: ≤90% coagulation free |
| Time of opening: 0.2 second |
| Pass speed: 30 persons/min |
| Emergence: When power off, arm open automatically |
| Normal running life: 3 million |
| Communication interface: standard RS485 interface, distance ≤1200m |
| Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
finish.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Application of barcode waist height turnstile
Subway Station , Airports , Hoverport , Terminal , Tourism Sports, Exhibition, Hotel,Factory,Bank, Prison ,
Hospital , School , Library ,Theater , Canteen,Swimming Hall , Fitness Gym , Residence Area , Gateway
Guard ,Toll Management ,Special Access Control , Bus Station , Enterprise’s Entrance and Exit
Attendance,
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. we can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
Barcode Waist Height Product Size Design
Barcode Wasit Height Turnstile Application Picture
