Safety CE Approved / Rapid Reaction / Automatic Tripod Turnstile Gate With Fingerprint/ QR Code / Barcode System
Description:
1. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.

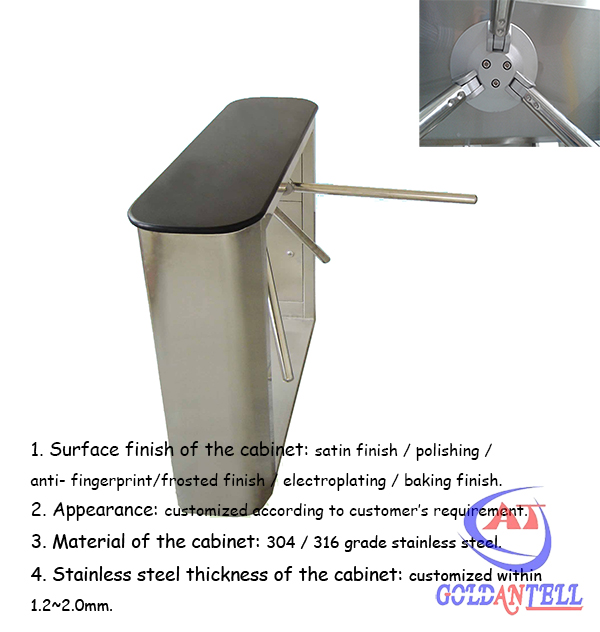

2. Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant shape, anti- rust,durable, Resistant to external damage.
3. Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
4. Application place: This item is widely used in station,pier,subway,factory,office building,intelligent community, hotel, clubs, enterprise, etc.
5. System Integration: This equipment is integrated with mechanism,electric and micro- controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on, toprovide intelligent control and management to flow control.
Specifications:
| Technical Parameters |
| Size | 1200 mm (L) * 280 mm (W) * 1000 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC 24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60 kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Housing material | domestic standard 304# stainless steel |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Feature & functions:
| Tripod turnstile function & Features |
| 1 | LED counting function |
| 2 | Turnstile can setting the working condition by press the button of main control board. |
| 3 | Auto-lift-arm function: the arm can lift automatically with alert when the power is on again. |
| 4 | Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off. |
| 5 | Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). |
| 6 | The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on. |
| 7 | Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate. |
| 8 | LED indicator light |
| 9 | The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile). |
| 10 | Can manager and long-range control the turnstile directly by managing the computer. |
| 11 | Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. |
Access control system:
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

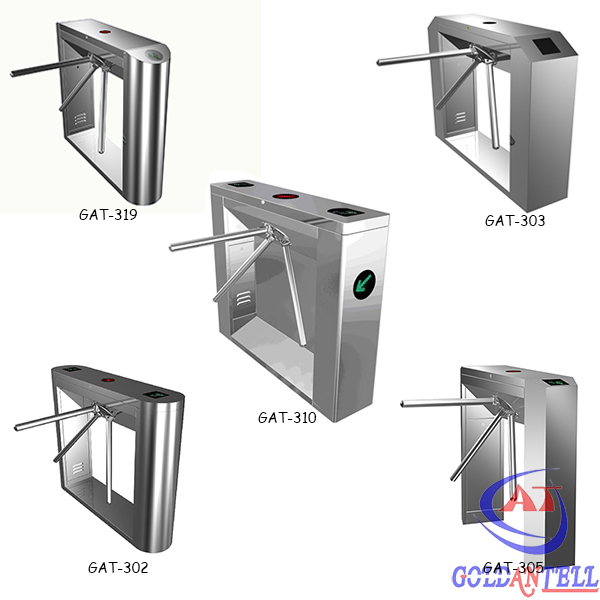

Popular items for your choice:
Package:
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
