Brand Name : Goldantell
Model Number : GAT-new
Certification : CE certificate
Place of Origin : Guangdong,China
MOQ : 1pc
Price : negotiation
Payment Terms : T/T ,western Union,LC,Paypal
Supply Ability : 2,000pcs per month
Delivery Time : 7 working days after received your payment
Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing
Certificate : CE
Usage : Office,Hotel,Library,Metro Station,ect.
Working environment : Indoor / Outdoor ( Shelter),indoor
Direction : one-way,bi-direction adjustable
Material : 304 Stainless Steel, (or custom 316)
Dimension : L1200xW280xH1000mm
Transit speed : 25~30 persons / min
Power supply : 110~240 V(AC)
Passage width : 600mm
Warranty : 12 Months
New metro turnstile Three Roller Indoor Outdoor Security Gate Fingerprint Face Scanner Mechanism Stainless Steel
Description Of Metro Turnstile
1. Tripod turnstile gate are compact and cost-effective entrance solutions.
2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3. Tripod turnstile gate is ideal for indoor and outdoor settings.
4. In case of emergency, the tripod turnstile gate will drop down when power off.
5. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
Working voltage | AC220±10%V 50±10%HZ |
Working movement | DC24V solenoid valve |
Arm width: | 510 mm |
Support force of arm: | 60kg |
Passage width: | ≤600 mm |
Time of opening: | 0.2 second |
Pass speed: | 30 persons/min |
Emergence: | When power off, arm open automatically |
Normal running life: | 3 million |
LED light: | direction arrow |
Direction: | single or bi-directional (optional) |
Working environment: | indoor/outdoor (with a tent over) -10℃~70℃ |
Relative humidity: | ≤90% coagulation free |
Communication interface: | standard RS485 interface, distance ≤1200m |
Housing material | domestic standard 304 # stainless steel |
Input interface: | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
-Low noise, no mechanical impact
-Single directional or Bi-directional
-High operation with quick response
-Excellent design, with high quality
-Robust, rigid , anti-rust and durable
-Smoothly working system
-Self-test function
Added function
-Counting function available (counter)
-Information display option (LCD display screen)
-Audible sound prompt
-Invalid entering alarm
-Auto-lift-arm function (full automatically type)

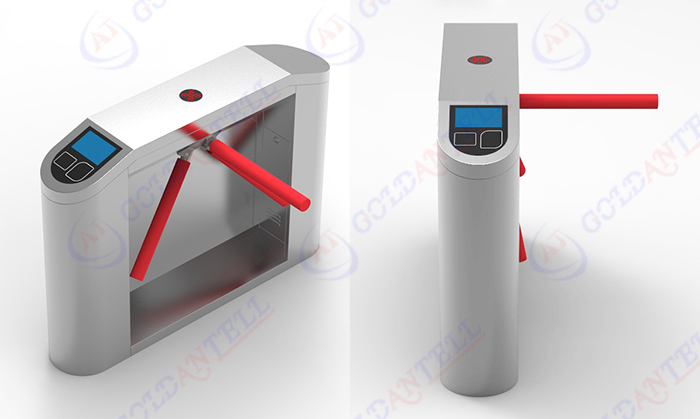

Photo Of Metro Turnstile
♦ Public Places:Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls,Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School.
1. Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
![]() |
Metro Security Turnstile Gate Three Roller Indoor Outdoor with Fingerprint Face Scanner Images |
