2020 office building turnstile gate Waist-high pedestrian Speed Lane barrier thermal channel
Application
Access Width : 900mm space, more comfortable for pedestrian to pass through the gate.
Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Specification
| Product Model | GAT-687 |
| Product Size | 1400/1300 *200*1000mm |
| Path width | in 600,900mm (for one pair), or more |
| Direction | single or bi-directional (optional) |
| Time of opening/closing | 0.6 second |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | 10 seconds |
| Normal running life | 3 million |
| Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
| Drive motor | DC24V brush motor
|

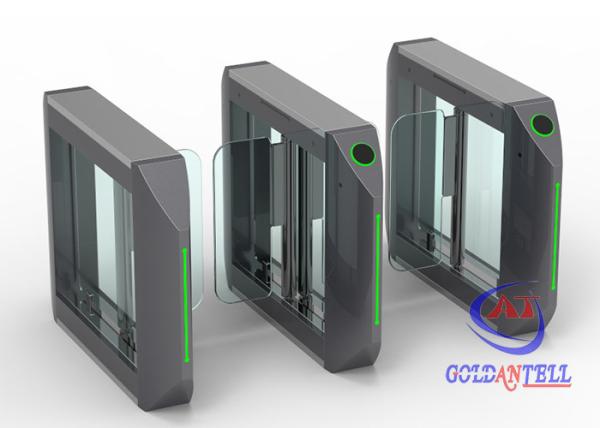

Product Display
~~Single lane (channel)
~~Multiple lanes ( 2, 3, 4 or more channels, passageway required) can be made according to your requirement.
Function Description
-Directional LED Optical Signals: Green Arrow or RED Cross signage.
-With fault self-check function and Alarm function, convenience for maintains.
-Mechanism is specially processed ,more durable.
-Always open or close modes, When Fire alarm on, The acrylics will retract automatically.
-Ensures rapid, efficient & safe access control.
-Individual installation interface, easy to integrated with Magnetic card, Barcode card, ID card, IC card etc.
-Photo Electric Beams installed standard for all models.
